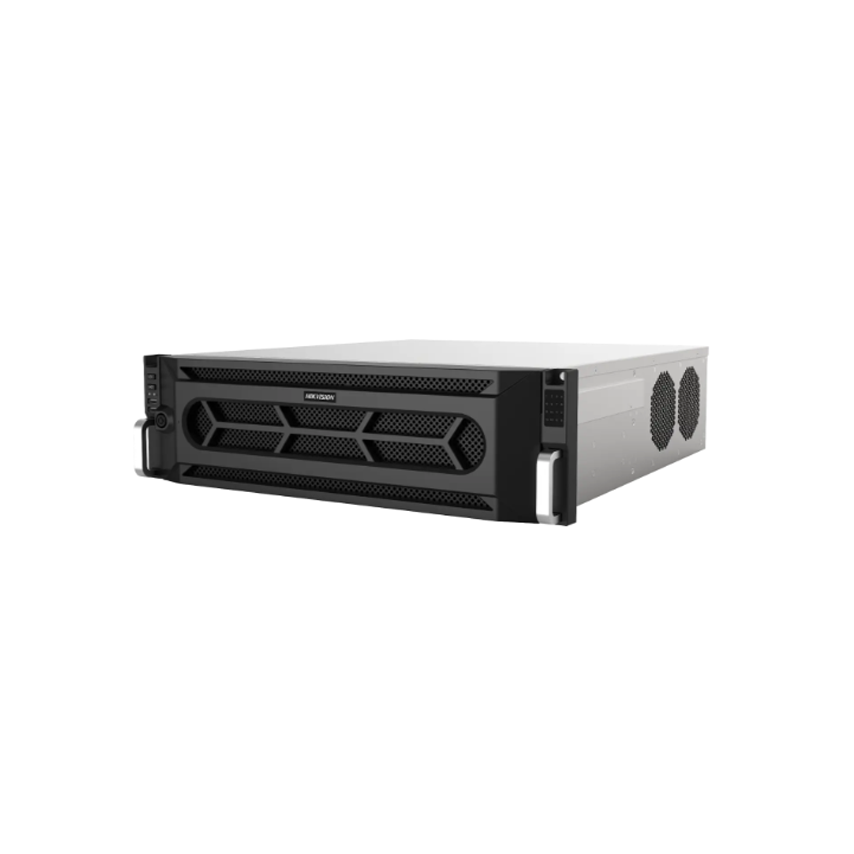

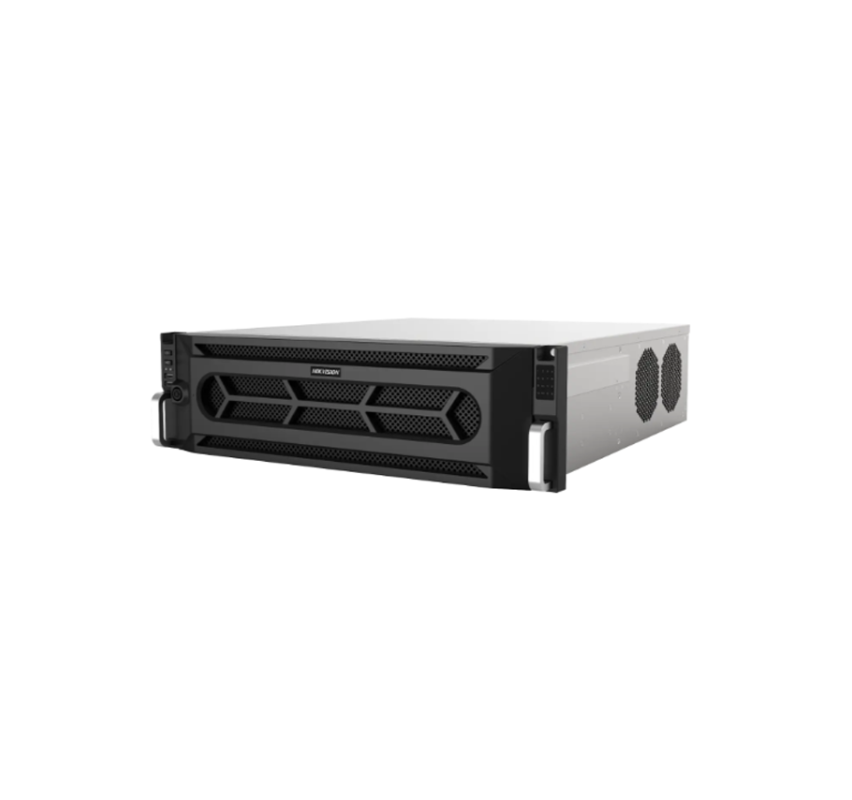

Dual-Board X86 NVR

Lượt xem: 325 - Ngày đăng: 19/07/2023

Giá: Liên hệ

- Dòng Ultra [100,256] -ch, HĐH cài đặt sẵn Ubuntu Linux, bo mạch kép, 16 ổ cứng
- Mô-đun độc đáo có các điểm mạnh của sự phát triển phần cứng vượt trội
- Giao diện I/O và PoE cảnh báo có thể định cấu hình để tích hợp bên thứ ba
- Nhiều model với phần cứng tương ứng như CPU và bộ nhớ, có thể cung cấp cho nhiều ứng dụng
- Thiết kế công nghiệp tiên tiến và giao diện người dùng trực quan
- Có nhiều kinh nghiệm trong phát triển phần cứng và dịch vụ OEM

Đặt mua ngay

0945 322 022 (Hotline) Liên hệ

Nội dung

Thông số kĩ thuật

System
Processor	Quad-Core Intel® Xeon® Processor E3 V5 Series
Memory	8GB DDR4. ECC parity. Extendable up to 64 GB
Operating System	Ubuntu Linux is installed by default. Microsoft Windows, including Windows 7E,,Windows 10, and Windows Server 2012 R2 can be installed
External Interface
USB Interface	Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
LAN	4 × RJ45 10M/100M/1000M self-adaptive Ethernet interface
Serial Interface	1 ×RS-485 (full-duplex);1 × Keyboard;1 ×RS-232,
Two-Way Audio Interface	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Alarm Input / Output	16/8
Storage
SATA Interface	16 3.5-inch HDDs are connectable. Hot swapping
Capacity	Up to 10 TB for each HDD
ESATA	1 × eSATA interface ;2 × mini SAS interface (optional),
Server Board
Video Card	Intel® HD Graphics P530
System Disk	Industrial-level SSD with 128 GB capacity
Video Output	2 × HDMI interface with resolution up to 4K;,1 × VGA interface with resolution up to 1080p,HDMI 1 and VGA simultaneous output mode is enabled by default.
Audio Input/Output	2 × RCA interface. One for audio input and one for audio output
SATA Interface	Four 2.5-inch HDDs are connectable
Storage Board
Installation	Pluggable HDD tray. Hot swapping
RAID	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Processor	Dual-Core Intel Processor,
Operation System	Embedded Linux
IPC Video Input	128-ch
Incoming/Outgoing Bandwidth	576/512Mbps
TLS Outgoing Bandwidth	128 Mbps, or 64 Mbps (when RAID is enabled),
Decoding Format	H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
Video Resolution	12MP/8MP/7MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/Q,CIF
Synchronous Playback	16-ch
Capability	H.264, H.264+, H.265, and H.265+ stream: 20@1080p;,MPEG4 and MJPEG: 10@1080p
Other Parameter
Working Humidity	10% to 90% RH (no freezing and no condensation)
Storage Temperature	-10 °C to +70 °C (+14 °F to +158 °F)
Storage Humidity	5% to 90% RH (no freezing and no condensation)
Hardware
Structure	Pluggable HDD trays with no-cable design and dual-board structure (server board,and storage board) realize effective task and storage management.
Bezel	Frosted aluminum alloy bezel. Hot swapping
Multi-Functional Mounting Ears	Integrates status indicators, functional buttons, USB interfaces, and handles.,Supports one-key muting
Fan	Redundant dual-ball bearing fan. Hot swapping and smart speed adjusting
Power Supply	Redundant power supply module meets the Intel CRPS (Common Redundant,Power Supply) standard. 100 to 240 VAC, 550 W wide-range power input
Guide Rail	External guide rail for installing device into a rack
Video/Audio Output
HDMI Interface	Two independent HDMI outputs, resolution: 4K (4096x2160), 4K,(3840x2160)/30Hz, 2K (2560x1440)/60Hz, 1080p (1920x1080)/60Hz, UXGA,(1600x1200)/60Hz, SXGA (1280x1024)/60Hz, 720p (1280x720)/60Hz, XGA,(1024x768)/60Hz
Audio Output	1-ch, RCA (2.0 Vp-p, 1 KΩ)
VGA Interface	1-ch, resolution: 1080p (1920x1080)/60Hz, UXGA (1600x1200)/60Hz, SXGA (1280x1024)/60Hz, 720p (1280x 720)/60Hz, XGA (1024x768)/60Hz
General
Consumption (Without Hard Disk)	≤ 350 W
Working Temperature	-10 °C to +70 °C (+14 °F to +158 °F)
Working Humidity	5% to 90% RH (no freezing and no condensation)
Dimensions (W × D × H)	487 × 560 × 133 mm (19.2 × 22.0 × 5.2 inch),
Weight (Without Hard Disk)	≤ 20 Kg (44.1 lb)
Chassis	3U chassis of thick galvanized steel,
