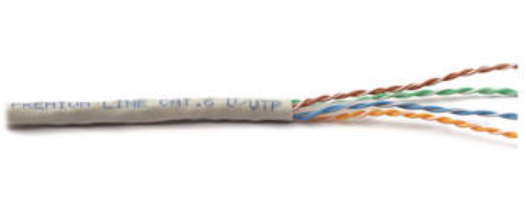

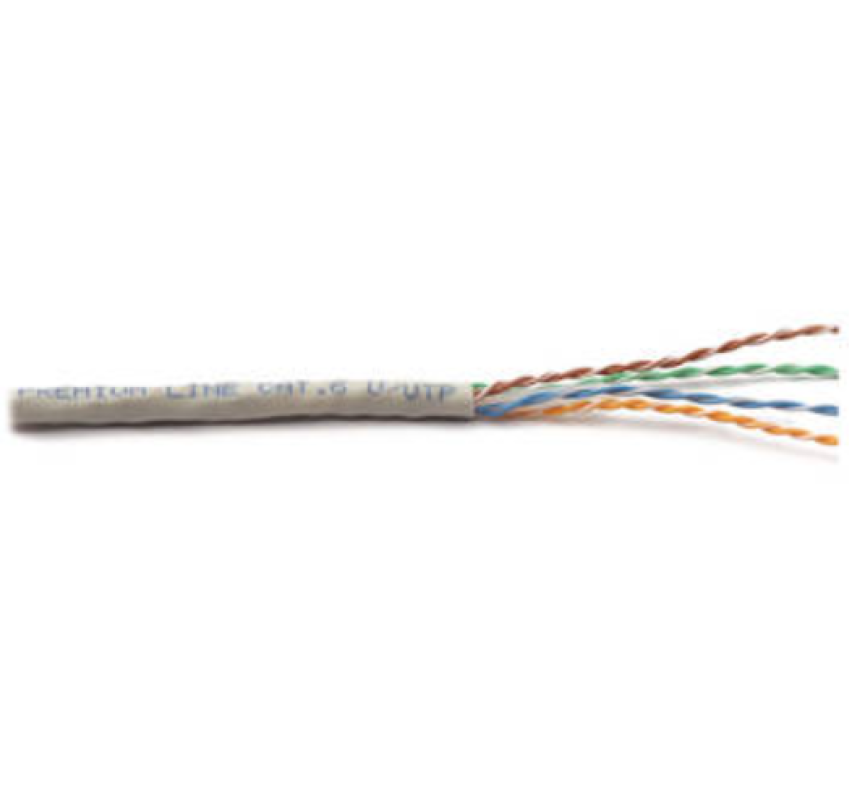

Cable Cat. 6 U/UTP, Premium Line

Lượt xem: 172 - Ngày đăng: 19/10/2022

Giá: Liên hệ

Cable Cat. 6 U/UTP

Standards:

ANSI/TIA-568.2-D:2018
ISO/IEC 11801-1:2017
CENELEC EN 50173-1
CENELEC EN 50288-6-1
Flame retardancy is verified according to IEC 60332-1-2
3P certified
ETL certified
RoHS compliant

Application:

1000BASE-TX (Gigabit Ethernet)
1000BASE-T (Gigabit Ethernet)
100BASE-TX Fast Ethernet
10BASE-T Ethernet
Voice

Đặt mua ngay

0945 322 022 (Hotline) Liên hệ

Nội dung

Construction

Conductor	Material / size	Bare Copper / 23 AWG
Insulation	Material	HDPE
Sheath	Material	PVC / LSOH
Sheath	Diameter	6.2± 0.3 mm

Mechanical & Environmental Characteristics

Bending Radius	≥ 6D, without load
Bending Radius	≥ 8D, with load
Operation Temperature	-20 °C ~+60°C
Installation Temperature	0°C ~+50°C
Storage Temperature	-30 °C ~+60°C

Category 6 U/UTP Installation Cable

PART NO.	DESCRIPTION	PACKING SIZE
206141115	Premium-Line Category 6 U/UTP Installation cable, 305 m Box, PVC, Grey	45×45×21 cm
206142115	Premium-Line Category 6 U/UTP Installation cable, 305 m Box, LSOH, Grey	45×45×21 cm

Open all options (click on the “+” sign below)

Electrical Performance

Electrical Performance

Freq	Insertion Loss		NEXT		PS NEXT		ACR		PS ACR		ACR-F		PS ACR-F		Return Loss
(MHz)	(dB)		(dB/100m)		(dB)		(dB)		(dB)		(dB)		(dB)		(dB)
	Nor.	Typ.	Nor.	Typ.	Nor.	Typ.	Nor.	Typ.	Nor.	Typ.	Nor.	Typ.	Nor.	Typ.	Nor.	Typ.
1.0	2.1	1.8	74.3	82.3	72.3	77.3	72.2	80.5	70.2	75.5	67.8	84.8	64.8	79.8	20.0	29.0
4.0	3.8	3.5	65.3	73.3	63.3	68.3	61.4	69.8	59.4	64.8	55.8	72.8	52.8	67.8	23.0	32.0
10.0	6.0	5.6	59.3	67.3	57.3	62.3	53.3	61.7	51.3	56.7	47.8	64.8	44.8	59.8	25.0	38.0
16.0	7.6	7.1	56.2	64.2	54.2	59.2	48.6	57.1	46.6	52.1	43.7	60.7	40.7	55.7	25.0	34.0
20.0	8.5	7.9	54.8	62.8	52.8	57.8	46.2	54.9	44.2	49.9	41.8	58.8	38.8	53.8	25.0	34.0
31.25	10.8	10.0	51.9	59.9	49.9	54.9	41.1	49.9	39.1	44.9	37.9	54.9	34.9	49.9	23.6	32.0
62.5	15.5	14.4	47.4	55.4	45.4	50.4	31.9	41.0	29.9	36	31.9	48.9	28.9	43.9	21.5	32.0
100.0	19.9	18.6	44.3	52.3	42.3	47.3	24.4	33.7	22.4	28.7	27.8	44.8	24.8	39.8	20.1	32.0
160.0	25.9	24.1	41.2	49.2	39.2	44.2	15.5	25.1	13.5	20.1	23.7	40.7	20	35.7	18.7	31.0
200.0	29.0	26.8	39.8	47.8	37.8	42.8	10.6	21.0	8.6	15.2	21.8	38.8	18.8	33.8	18.0	29.0
250.0	33.0	30.5	38.3	46.3	36.3	40.3	5.3	15.8	3.3	10.8	19.8	37	16.8	31.8	17.3	29.0
